HDI-80F T6U



HDI-80F T6U

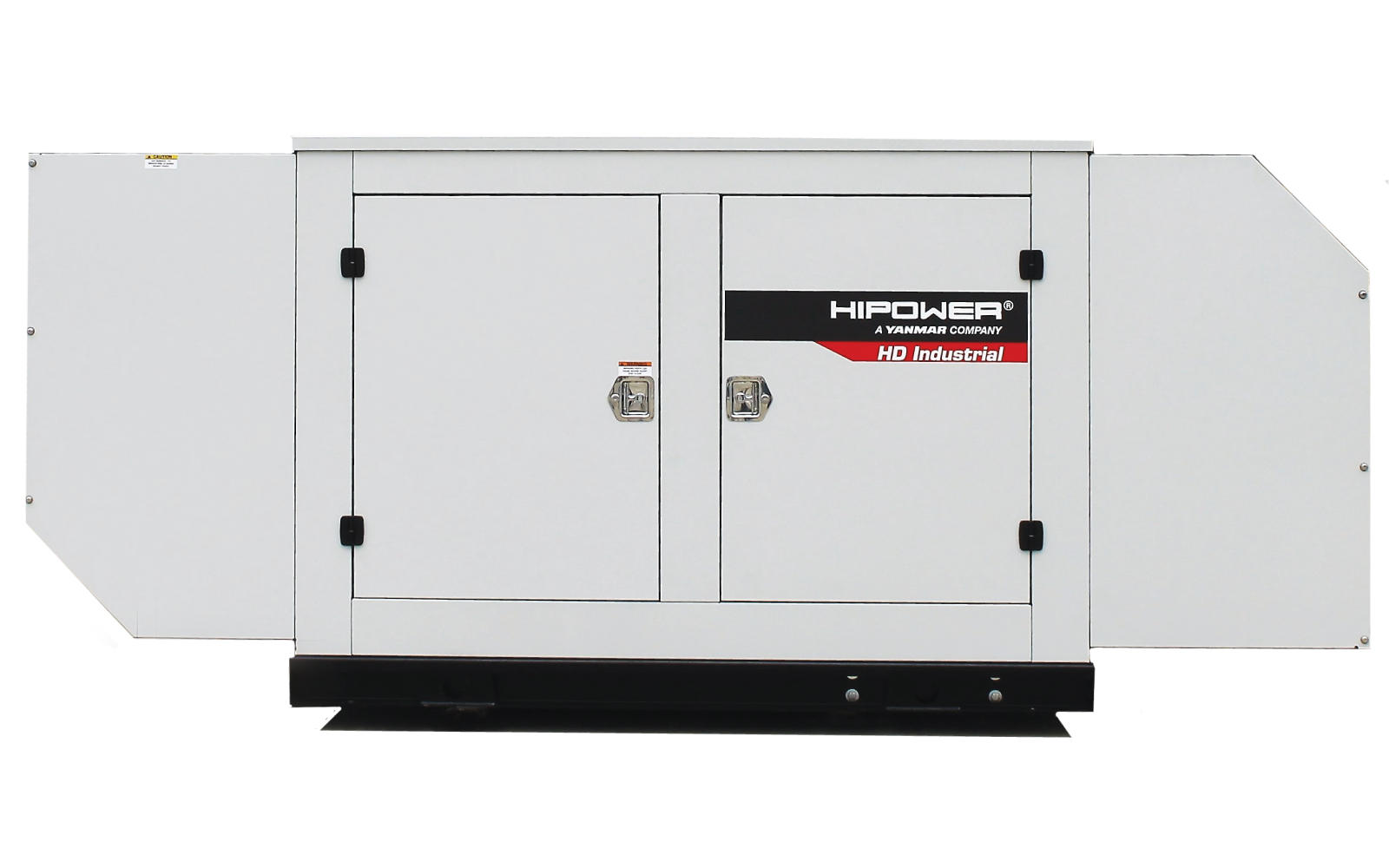

83 kW Standby Generator set Soundproof

Powered by: FPT_IVECO
Alternator: STAMFORD



Three phase | 60 Hz | Diesel | TIER III





  • Engine Specifications 1.800 r.p.m.
  • Rated Engine Output: 86,7kW prp ; 95,3kW standby
  • Manufacturer: FPT_IVECO
  • Model: NEF45TM2X
  • Engine Type: 4-stroke diesel
  • Injection Type: Direct
  • Aspiration Type: Turbocharged and after-cooled
  • Number of cylinders and arrangement: 4-L
  • Bore and Stroke: 104 x 132 mm
  • Displacement: 4,5 L
  • Cooling System: Liquid (water + 50% glycol)
  • Lube Oil Specifications: ACEA E3 - E5
  • Compression Ratio: 17,5:1
  • Fuel Consumption ESP: 6.84 Gal/h
  • Fuel Consumption 100% PRP: 6.5 Gal/h
  • Fuel Consumption 80 % PRP: 5.28 Gal/h
  • Fuel Consumption 50 % PRP: 3.51 Gal/h
  • Lube oil consumption with full load: 0,5 % of fuel consumption
  • Total oil capacity including tubes, filters 12,8 L
  • Total coolant capacity: 18,5 L
  • Governor Type Mechanical
  • Air Filter Type Dry
  • Inner diameter exhaust pipe: 70,3 mm
  • Generator: STAMFORD
  • Model: UCI274C
  • Poles: 4
  • Connection type (standard): Star-series
  • Mounting type: S-3 11"1/2
  • Insulation: H class
  • Enclosure (according IEC-34-5): IP23
  • Exciter system: Self-excited, brushless
  • Voltage regulator: A.V.R. (Electronic)
  • Bracket type: Single bearing
  • Coupling system: Flexible disc
  • Coating type: Standard (Vacuum impregnation)
  • - EXHAUST SYSTEM.
  • Maximum exhaust temperature: 887 ºF
  • Maximum allowed back pressure: 5 kPa
  • Heat dissipated by exhaust pipe: 713 KCal/Kwh
  • - NECESSARY AMOUNT OF AIR.
  • Intake air flow: 306 scfm
  • Cooling Air Flow: 6,357 scfm
  • Alternator fan air flow: 1,307 scfm
  • - STARTING SYSTEM.
  • Starting power: 3 kW
  • Starting power: 4.02 HP
  • Recommended battery: 100 Ah
  • Auxiliary Voltage: 12 Vdc
  • - FUEL SYSTEM
  • Fuel Oil Specifications: Diesel
  • - DIMENSIONS.
  • Length: 142.99 in
  • Height: 60 in
  • Width: 46.3 in
  • Maximum shipping volume: 230.6 ft3
  • Sound pressure level: 68 ± 2,4 dB(A)@7m
