    Model: HDI-600V T6U Open Skid Standby HD06OP
    Model: HDI-600V T6U Stationary Standby HD06LV1
    Model: HDI-600V T6U Stationary Standby HD06LV2

    Model

    HDI-600V T6U

    Three phase | Diesel | Level 1 Stationary Standby

    Model

    Powered by VOLVO

    Alternator STAMFORD

    Emissions TIER II

    PRP
    ESP
    COP
    Power kVA
    738
    Power kW
    590
    Voltage Frequency Phase Alternator Connection type Generator set data sheet
    120/208 V 60 Hz Three phase HCI534F Star - Parallel Download
    120D/240 V 60 Hz Three phase HCI534F Delta-series Download
    138/240 V 60 Hz Three phase HCI534F Star - Parallel Download
    277/480 V 60 Hz Three phase HCI534E Star-series Download
    277/480 V 60 Hz Three phase HCI534F Star-series Download
    347/600 V 60 Hz Three phase HCI534F Star-series Download
    Engine Alternator Installation Dimensions
    • Engine Specifications 1,800 r.p.m.
    • Rated Engine Output: 582kW prp ; 640kW standby
    • Manufacturer: VOLVO
    • Model: TWD1644GE
    • Engine Type: 4-stroke diesel
    • Injection Type: Direct
    • Aspiration Type: Turbocharged and after-cooled
    • Number of cylinders and arrangement: 6-L
    • Bore and Stroke: 5.67 x 6.5 in
    • Displacement: 983.64 CID
    • Cooling System: Coolant
    • Lube Oil Specifications: VDS-3,VDS-2;ACEA E7,E4;API CI-4,CH-4,CG-4
    • Compression Ratio: 16.8:1
    • Fuel Consumption ESP: 41.48 Gal/h
    • Fuel Consumption 100% PRP: 38.1 Gal/h
    • Fuel Consumption 75 % PRP: 27.01 Gal/h
    • Fuel Consumption 50 % PRP: 18.46 Gal/h
    • Fuel Consumption 25 % PRP: 10.64 Gal/h
    • Lube oil consumption with full load: 0.1 % of fuel consumption
    • Total oil capacity including tubes, filters 12.68 Gal
    • Total coolant capacity: 13.21 Gal
    • Governor Type Electrical
    • Air Filter Type Dry
    • Inner diameter exhaust pipe: 139 in

    • Generator: STAMFORD
    • Model: HCI534F
    • Poles: 4
    • Connection type (standard): Star - Parallel
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534E
    • Poles: 4
    • Connection type (standard): Star-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534F
    • Poles: 4
    • Connection type (standard): Star-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534F
    • Poles: 4
    • Connection type (standard): Star-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534F
    • Poles: 4
    • Connection type (standard): Delta-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)
    • - EXHAUST SYSTEM.
    • Maximum exhaust temperature: 923 ºF
    • Exhaust Gas Flow: 242,612.00 cfs
    • Maximum allowed back pressure: 40.10 inH2O
    • - NECESSARY AMOUNT OF AIR.
    • Intake air flow: 1,649 scfm
    • Cooling Air Flow: 28,181 scfm
    • Alternator fan air flow: 2,780 scfm
    • - STARTING SYSTEM.
    • Starting power: 7 kW
    • Starting power: 9.39 HP
    • Auxiliary Voltage: 24 Vdc
    • Nominal starter current: 300 A
    • - FUEL SYSTEM
    • Fuel Oil Specifications: Diesel
    • - DIMENSIONS.
    • Length: 207.09 in
    • Height: 93 in
    • Width: 68.5 in
    • Maximum shipping volume: 762.8 ft3
    • Weight with liquids in radiator and sump: 9,299 Lbs
    • Sound pressure level: 79 ± 2.4 dB(A)@7m

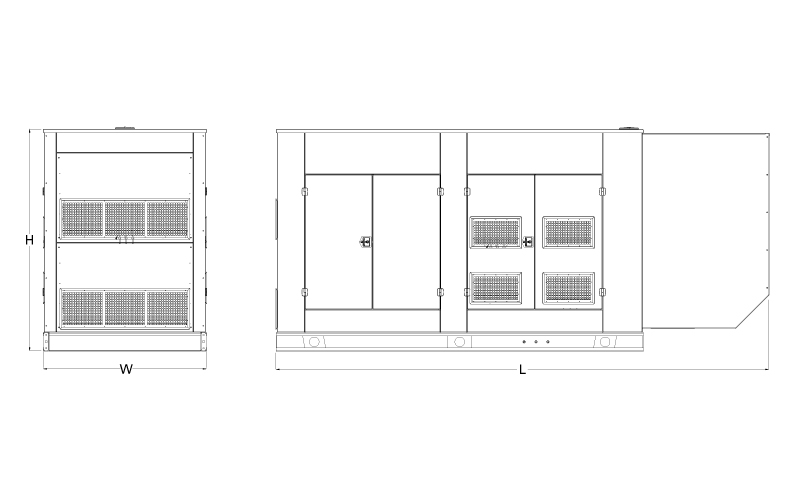

    Dimensions

    Dimensions
    Length526207.1
    Width17468.5
    Height23692.9

    Weight

    Weight

    Weight with fluids in radiator and crankcase

    4,218

    9,301
