    Model: HDI-400V T6U Open Skid Standby HD05OP
    Model: HDI-400V T6U Stationary Standby HD05LV1
    Model: HDI-400V T6U Stationary Standby HD05LV2

    Model

    HDI-400V T6U

    Three phase | Diesel | Level 2 Stationary Standby

    Model

    Powered by VOLVO

    Alternator STAMFORD

    Emissions TIER III

    PRP
    ESP
    COP
    Power kVA
    500
    Power kW
    400
    Voltage Frequency Phase Alternator Connection type Generator set data sheet
    120/208 V 60 Hz Three phase HCI534C Star - Parallel Download
    120/208 V 60 Hz Three phase HCI534D Star - Parallel Download
    120D/240 V 60 Hz Three phase HCI534C Delta-series Download
    120D/240 V 60 Hz Three phase HCI534D Delta-series Download
    138/240 V 60 Hz Three phase HCI534C Star - Parallel Download
    138/240 V 60 Hz Three phase HCI534D Star - Parallel Download
    277/480 V 60 Hz Three phase S4L1D.F41 Star-series Download
    277/480 V 60 Hz Three phase HCI534C Star-series Download
    347/600 V 60 Hz Three phase S4L1S.F Star-series Download
    347/600 V 60 Hz Three phase HCI534C Star-series Download
    Engine Alternator Installation Dimensions
    • Engine Specifications 1,800 r.p.m.
    • Rated Engine Output: 391kW prp ; 430kW standby
    • Manufacturer: VOLVO
    • Model: TAD 1353GE
    • Engine Type: 4-stroke diesel
    • Injection Type: Direct
    • Aspiration Type: Turbocharged and after-cooled
    • Number of cylinders and arrangement: 6-L
    • Bore and Stroke: 5.16 x 6.22 in
    • Displacement: 779.84 CID
    • Cooling System: Coolant
    • Lube Oil Specifications: VDS-3,VDS-2;ACEA E7,E4;API CI-4,CH-4,CG-4
    • Compression Ratio: 18.1:1
    • Fuel Consumption ESP: 26.42 Gal/h
    • Fuel Consumption 100% PRP: 24.14 Gal/h
    • Fuel Consumption 75 % PRP: 18.92 Gal/h
    • Fuel Consumption 50 % PRP: 13.15 Gal/h
    • Fuel Consumption 25 % PRP: 7.51 Gal/h
    • Lube oil consumption with full load: 0.102
    • Total oil capacity including tubes, filters 9.51 Gal
    • Total coolant capacity: 11.62 Gal
    • Governor Type Electrical
    • Air Filter Type Dry

    • Generator: STAMFORD
    • Model: S4L1D.F41
    • Poles: 4
    • Connection type (standard): Star-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534C
    • Poles: 4
    • Connection type (standard): Star - Parallel
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: S4L1S.F
    • Poles: 4
    • Connection type (standard): Star-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534D
    • Poles: 4
    • Connection type (standard): Star - Parallel
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534D
    • Poles: 4
    • Connection type (standard): Star - Parallel
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534C
    • Poles: 4
    • Connection type (standard): Star-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534C
    • Poles: 4
    • Connection type (standard): Star-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534C
    • Poles: 4
    • Connection type (standard): Delta-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)

    • Generator: STAMFORD
    • Model: HCI534D
    • Poles: 4
    • Connection type (standard): Delta-series
    • Mounting type: S-1 14"
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)
    • - EXHAUST SYSTEM.
    • Maximum exhaust temperature: 923 ºF
    • Exhaust Gas Flow: 167,392.00 cfs
    • Maximum allowed back pressure: 40.10 inH2O
    • Heat dissipated by exhaust pipe: 675,89 KCal/Kwh
    • - NECESSARY AMOUNT OF AIR.
    • Intake air flow: 1,102 scfm
    • Cooling Air Flow: 14,663 scfm
    • Alternator fan air flow: 1,949 scfm
    • - STARTING SYSTEM.
    • Starting power: 7 kW
    • Starting power: 9.39 HP
    • Auxiliary Voltage: 24 Vdc
    • Nominal starter current: 280 A
    • - FUEL SYSTEM
    • Fuel Oil Specifications: Diesel
    • - DIMENSIONS.
    • Length: 225.98 in
    • Height: 84 in
    • Width: 68.5 in
    • Maximum shipping volume: 751.14 ft3
    • Weight with liquids in radiator and sump: 9,700 Lbs
    • Sound pressure level: 75 ± 2.4 dB(A)@7m

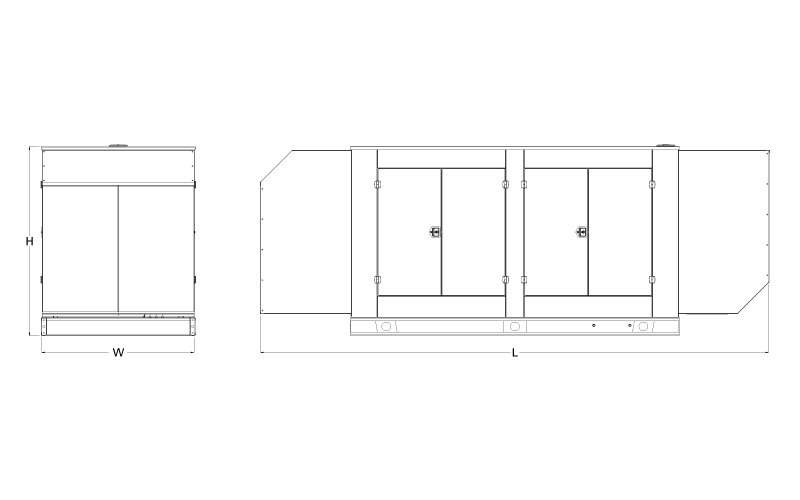

    Dimensions

    Dimensions
    Length574226
    Width17468.5
    Height21383.9

    Weight

    Weight

    Weight with fluids in radiator and crankcase

    4,400

    9,702
